HELIO A6
Aluminum folding wheelchair
STATE-OF-THE-ART MOBILITY ACCESSIBLE TO ALL
Boasting avant-garde design and advanced technology, it has one of the best price-quality ratios on the market. A blend of ingeniousness, efficiency and durability.
"My chair has given me the confidence and ability to travel and see the world. The freedom it gives me has allowed me to feel like myself again!"
Benefits
Lighter and more convenient
The HELIO A6 aims for efficiency and mobility at an affordable price. Durable components like our symmetrical cross brace ensure remarkable mobility and ease of propulsion while the lightweight design guarantees comfortable and agile handling.
Innovative design, superior manufacturing

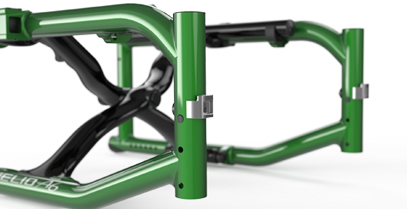

Solid manufacturing and reliable components that give you more, plus optional accessories that include height-adjustable T-armrests, integrated push handles and Newton One spoke wheels. Also, one-piece side frames for greater strength and maneuverability. In short, the HELIO A6 wheelchair offers exceptional durability, to serve you for many years to come.
Solid, fully adjustable components

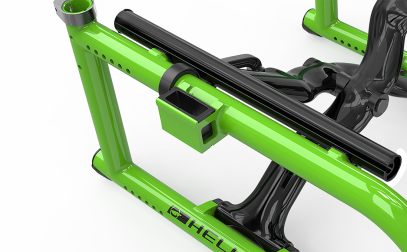

The vertical axle plates offer multiple center-of-gravity adjustments while maximizing lateral stability. The single post armrests let you adjust to a specific height without the bulk of conventional single post arms and the integrated armrest receiver eliminates vibration noises that can crop up over time.
Optimal seat-to-floor height
The frame’s innovative design allows you to achieve a super-low 12-inch (30.5-cm) front seat-to-floor height. In addition to easier contact with the floor, this feature provides better foot propulsion. Or, move it beyond 20 inches (50.8 cm) to meet your most challenging needs.
Features
Colors
Colors
Frame
*COLOR REPRESENTATION MAY VARY FROM ONE MONITOR TO ANOTHER. THEREFORE, THE ACTUAL PAINT COLOR ON YOUR WHEELCHAIR MIGHT DIFFER SLIGHTLY FROM WHAT YOU SEE ON YOUR SCREEN.
ENDLESS COLOR COMBINATIONS!
Personalize your wheelchair to express your unique self by mixing and matching the color of your frame and handrims!
Technologies

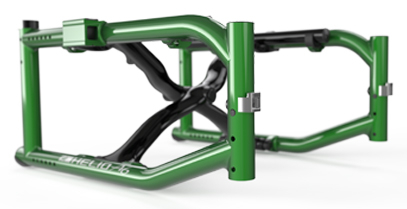

Rigid Unibody Frame
A unibody frame is much stronger and requires less maintenance than a standard two part frame. It also reduces weight while maximizing propulsion efficiency.
Symmetrical Hydroformed Crossbrace 3D
Entirely symmetrical aluminum cross brace for reduced torsion and better energy distribution throughout the frame.
Ultrarigid Folding System
High-precision tolerances and oversized pivot axles for best-in-class propulsion efficiency.
Anti-Flutter System
Minimize flutter with a simple twist of a screw. Provides a smooth, more efficient ride.
Newton Accessories
Parts and accessories designed to be lighter with improved functionality.
Technical specifications
structure
Frame
Folding
Material
6061 aluminum
Transport Weight
13.0 lb. | 5.9 kg (16 x 16 without rear wheels, wheel locks, armrests, cushion, anti-tippers and footrest). Lightest configuration: 22.9 lb. | 10.4 kg (with wheel locks and wheels)
Weight Limit
265 lb. | 120 kg — 350 lb. | 159 kg - HD Kit
dimensions
Seat width
14 in. to 22 in.
35.6 cm to 55.9 cm
Seat depth
14 in. to 20 in.
35.6 cm to 50.8 cm
Front seat to floor
12 in. to 20 ½ in.
30.5 cm to 52 cm
Rear seat to floor
12 in. to 20 ¼ in.
30.5 cm to 51.4 cm
Back height
12 in. to 24 in.
30.5 cm to 61 cm
Armrest Height
6 in. to 14 in.
15.2 cm to 35.6 cm
Front frame angle
60°, 70°, 80°, 90°
Back angle
85° to 110°
Wheel camber
0°, 3°, 6°
Center of gravity
3/4 in. to 2 ¾ in.
2 cm to 7 cm
Overall width
20 ¾ in. min – 33 ½ in. max.
52.7 cm min – 85.1 cm max.
Patent pending: 12876206.9, 2872080, 14/398624
Tools
Ready to exceed your limits?
